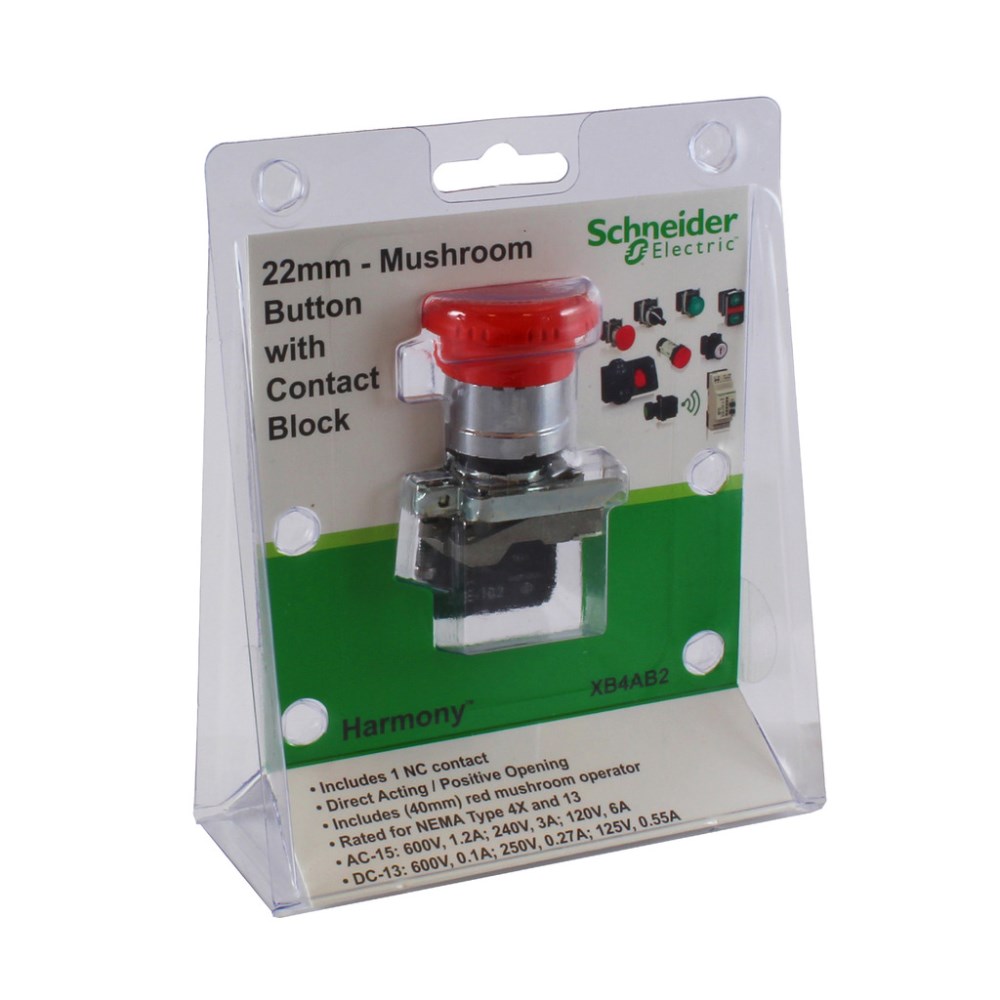

MUSHROOM 22MM WITH N/C CONTACT

This product is part of the Harmony XB4 range, an offer of Ø 22mm modular metal pushbuttons, switches, and pilot lights." "This E-stop pushbutton has a round shaped head and red mushroom operator. It operates with mechanical latching mechanism." "It has 1 NO and 1 NC contact with the slow break operation." "It is an emergency stop pushbutton with a rated operating current of 3A at 240V AC-15, 6A at 120V AC-15, 0.1A at 250V DC-13 and 0.22A at 125V, DC-13." "It is furnished with screw clamp terminals for electrical connection." "It offers mechanical durability of about 3,00,000 cycles. It is an IP66 and NEMA 4X/13 rated product." "The pushbutton is fitted with chromium plated bezel." "It is ideal for machine builder industry applications such as automotive, textile and wood. It is also suitable for use in public works, building and airport." "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
