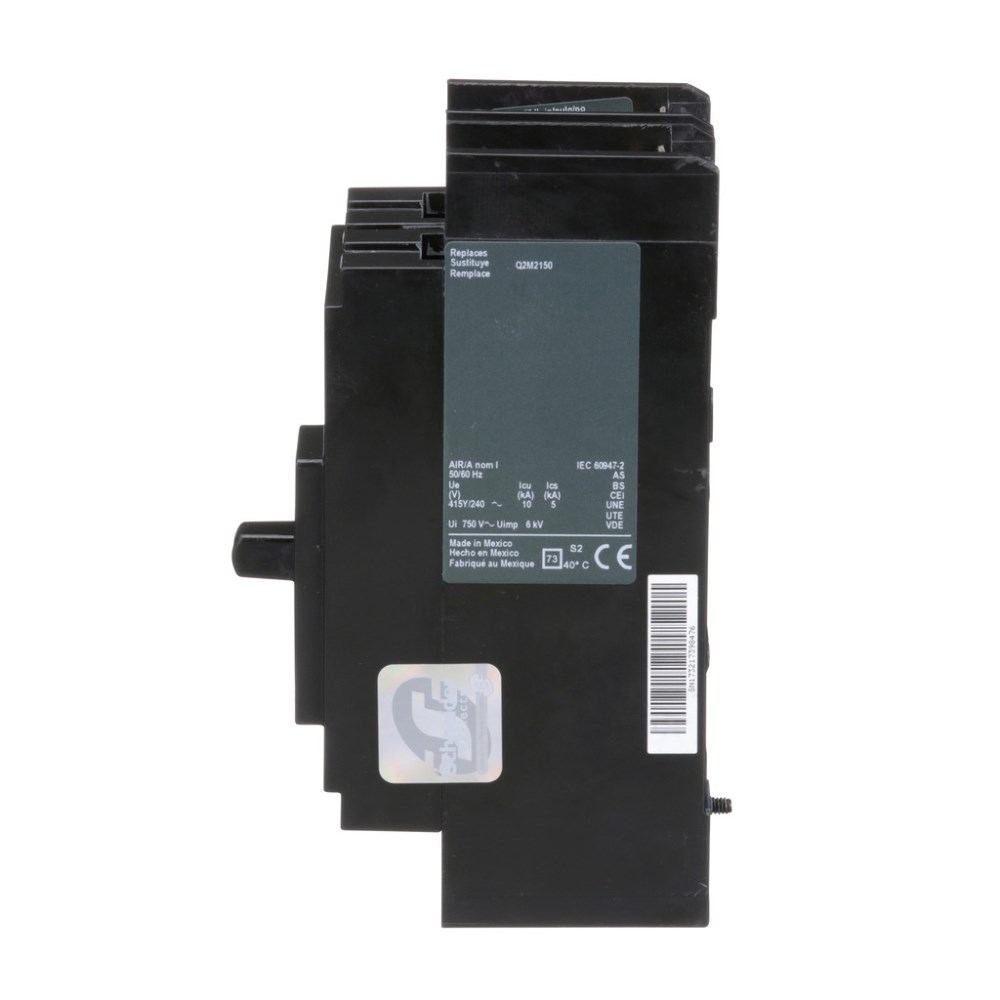

PANELMOUNT MCCB 240V 150A OFF END LUGS

The PowerPact® Q frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus connected unit mount constructions, or I Line® group mounted construction. PowerPact Q frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3 pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 2 pole and has a rated current of 150 A. This breaker has a breaking capacity of 10 kA@240VAC and has a continuous current rating of 80 %. This unit mounted breaker has a thermal magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400 A. Dimensions for this product are 6.47 in (H), 3.00 in (W), 3.93 in (D). This product complies to UL listed, CSA & IEC standards.
